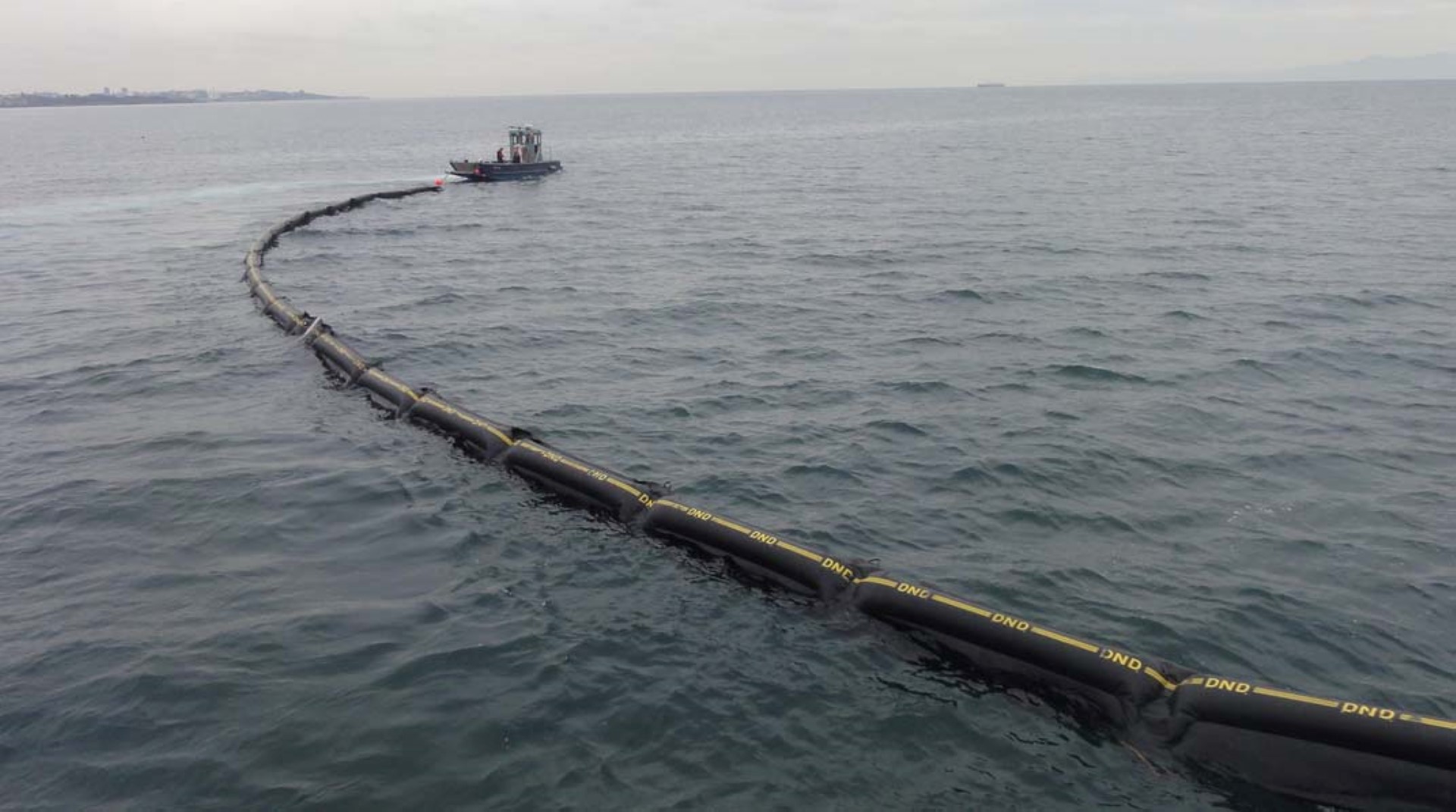

The Auto Boom Neoprene is a robust and durable single-point air inflated boom making it suitable for rapid emergency oil containment cases as well as permanent installations in harbors, nearshore and offshore scenarios.

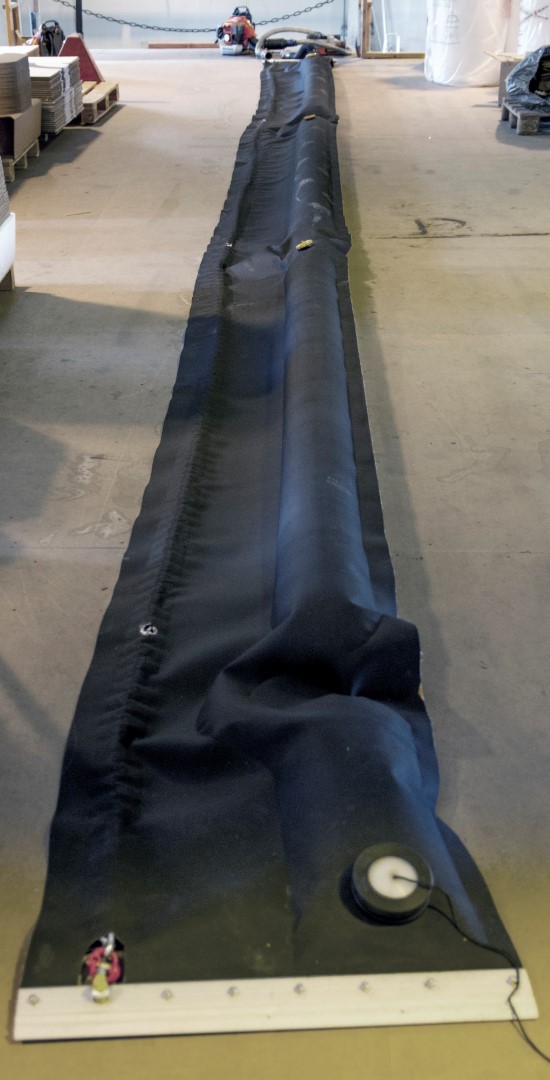

The Auto Boom is manufactured in robust Neoprene. The boom has 3 m (10 ft) long air chambers. Each individual buoyancy chamber is isolated. In the event that one air chamber may become damaged or deflated, adjacent chambers will not be affected and will remain inflated. Air-inflation is done from the outer end of the boom via a 2″ Camlock. In addition, each air chamber is fitted with Monsun XG 1 air valves. The ballast chain is a hot dip galvanized steel chain that gives strength, correct and stable deployment in sweeping operations and provides excellent sea keeping properties.
The ballast chain is incorporated in the base of the skirt. The boom sections comes with ASTM Z connectors made in accordance with the F962 standard. The Auto Boom Neoprene Harbor 970 can be deployed at 30 m/min (100 ft/min). It is a safe and easy to retrieve boom that easily deflates onto a storage reel. For detailed product information please find PDF-copies of product specification sheets under the Downloadables-section.
Gallery
Technical Specifications
Height (deflated) 970-2000 mm
Height (inflated) 800-1580 mm
Section length 29 m
Freeboard 300-570 mm
Draft 500-1010 mm
Weight 4.7-12.0 kg/m
Ballast chain DIN 763 10 / 13 mm
Coating / Base fabric PA 1880 dTex, Neoprene
Air valve 2″ Camlock & Monsun XG 1
Inflation pressure/td> 0.12 bar
End connector ASTM Z, F962 as standard
Features and Benefits
For use in emergency operations in nearshore and offshore
Single-point air inflation for simple and rapid deployment
Unique design prevents complete boom failure despite single air chamber puncture
Positive buoyancy built into the boom providing float prior to air inflation
Durable fabric
Low maintenance and easy to clean
